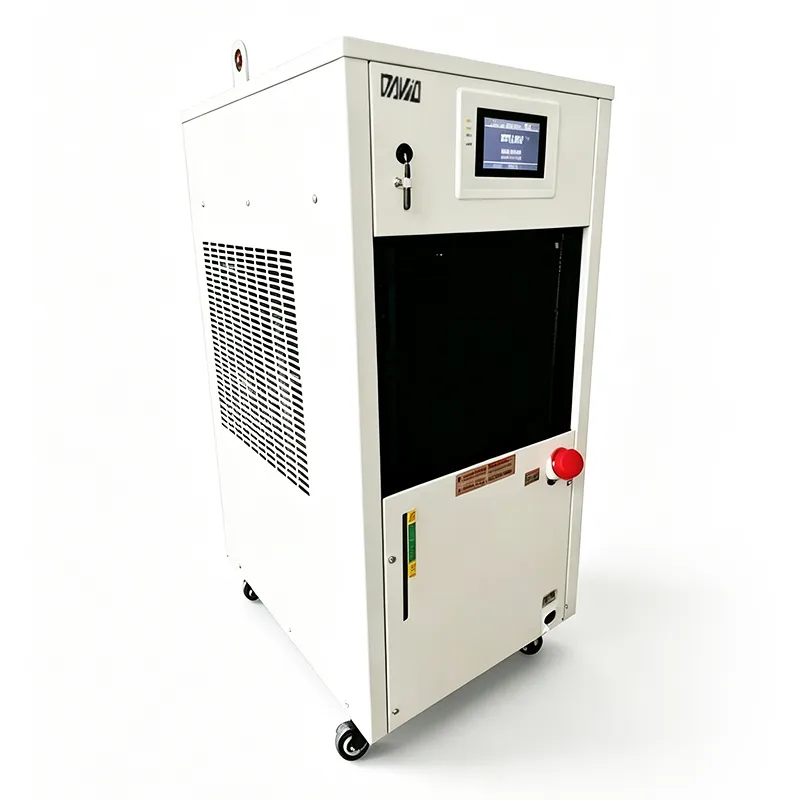

Water-Cooled Chillers

  • Cooling Capacity: 1-20kW

Water-cooled chillers use water as the main heat exchange medium to remove heat from equipment and maintain stable operating temperatures. They use an external circulating water system to remove heat from the chiller, which optimizes the temperature around both the cooling system and the processing equipment, while also reducing energy consumption.

Applications
Water-cooled chillers are used in manufacturing processes that require strict temperature control, to help maintain stable operation and consistent product quality during continuous production, including the following applications:

  • Semiconductor equipment
  • Display screen production
  • Chip packaging systems
Contact Us
Specification Sheet
Main Components
Evaporator

Evaporator
It absorbs heat from the cooling fluid through refrigerant evaporation and reduces the fluid temperature before it returns to the chiller.

Compressor

Compressor
It takes low-pressure refrigerant gas from the evaporator and compresses it into a high-pressure, high-temperature state, compresses it into a high-temperature, high-pressure gas, and sends it to the condenser.

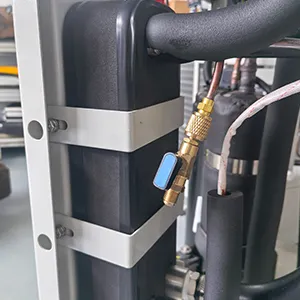

Plate Heat Exchanger

Plate Heat Exchanger
Uses metal plates to separate two fluids with different temperatures and transfers heat from the hotter fluid to the colder one without mixing them.

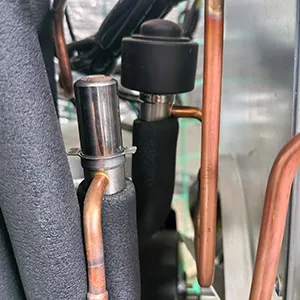

Expansion Valve

Expansion Valve
It lowers the pressure of the high-pressure refrigerant liquid, turning it into a low-temperature, low-pressure mixture that enters the evaporator for evaporation and heat absorption.

Specifications
Model AWXH-25PTS-1225A1
Cooling Capacity (50Hz) 2500W
Power Main Circuit AC 220V-240V 50Hz
Control Circuit Single Phase AC 220V-240V 50Hz
Enclosure Paint RAL-7035
Dimensions 580×500×1040mm
Compressor Rotary compressor 1kW
Evaporator Stainless steel coil
Condenser Stainless steel plate
Heating Element 304 stainless steel 0.5kW
Water Pump Power 0.55kW
Rated flow (50Hz) 30L/min (0.32Mpa)
Temperature Control Select one of the following two modes:
Differential temperature control mode (adjustable range: -9.9°C to +9.9°C)
Constant temperature control mode (inlet temperature setpoint range: 5°C to 40°C)
Refrigerant Control Capillary tube
Protection Devices Overcurrent protection
Flow protection
Earth leakage protection
Restart prevention timer
High temperature protection
Low temperature protection
Temperature Control Accuracy ±0.5℃
Refrigerant R22
Water Tank Capacity 20L (pure water)

Customization Notes: The material of the heat exchanger and sealing parts must be selected based on the cooling medium. The pump also needs to be customized according to the flow rate, viscosity, and pressure of the cooling medium.

Features
  • High Heat Exchange Efficiency
    Water can transfer heat more effectively than air, to allow faster cooling and improved system performance in continuous operation.
  • Stable Operation in Different Conditions
    Water-based cooling is less affected by ambient temperature, which helps maintain consistent performance even in complex industrial conditions.
