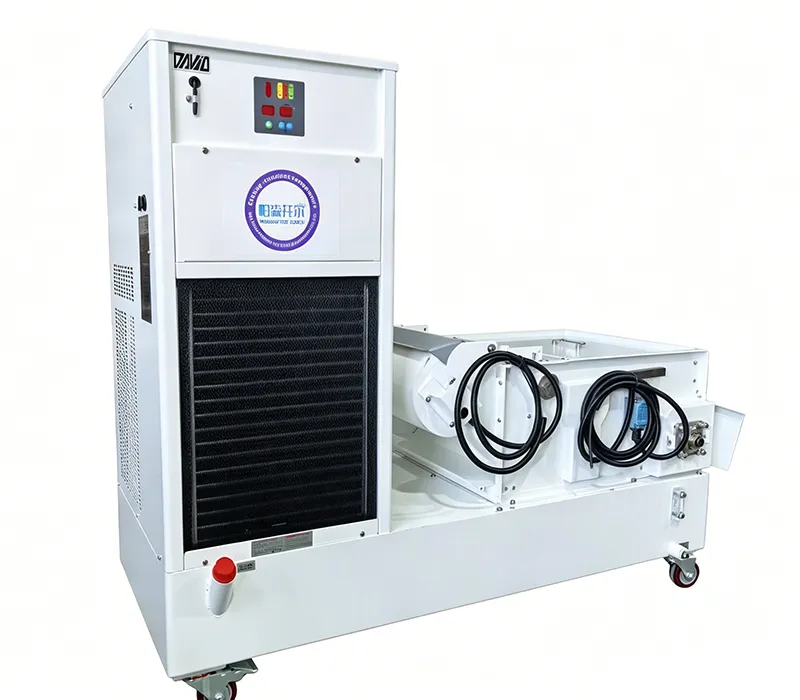

High Pressure Coolant System
Integrated Filtration & Chilling System
- Process Chiller Type: Water/oil medium, air-cooled chiller
- Cooling Capacity: 3.5-10kW
High pressure coolant systems clean cutting fluid, cool it, and send it back to the machine at high pressure in one system. The dirty coolant is first filtered to remove chips and dirt, then cooled down, and finally pumped into the cutting area to help with cooling and cutting. Our high pressure coolant systems are used in grinding machines, machining centers, gear machines, and other equipment that needs clean, cooled coolants for stable operation.
Contact Us
Specifications
| Model | AK-35PTS-ａ01 |
| Cooling Capacity | 3500W 3010Kcal |
| Control Accuracy | 1.5K |
| Power Supply | 220VAC 50Hz 3-Phase / 380VAC 50Hz 3-Phase |
| Max. Power | 2300W, 10A |
| Temperature Control | Constant temperature control: 10°C to 40°C Differential temperature control (ambient temperature compensation): ±9.9℃ |
| Ambient Temperature (℃) | 10-45℃ |
| Applicable Fluids | Water, water-based cutting fluids |
| Tank Capacity | 100L |
| Flow Rate | 2m³ |
| Pump Head | 23m |
| Connections | Inlet G 2" Outlet G 3/4" |
| Filtration Accuracy | 50 μm |
Features
- High-pressure coolant reaches the cutting zone directly, avoids dry cutting, and removes heat quickly to keep machining temperature stable
- Filtration system removes small particles from the coolant, prevents wear on the high-pressure pump, and extends coolant service life
- High-pressure cooling reduces tool temperature, lowers tool wear, and extends tool life
