Cutting Fluid Chiller / Industrial Immersion Chiller

Industrial Oil Chiller

Process Chiller Type: Oil/water medium, air-cooled chiller

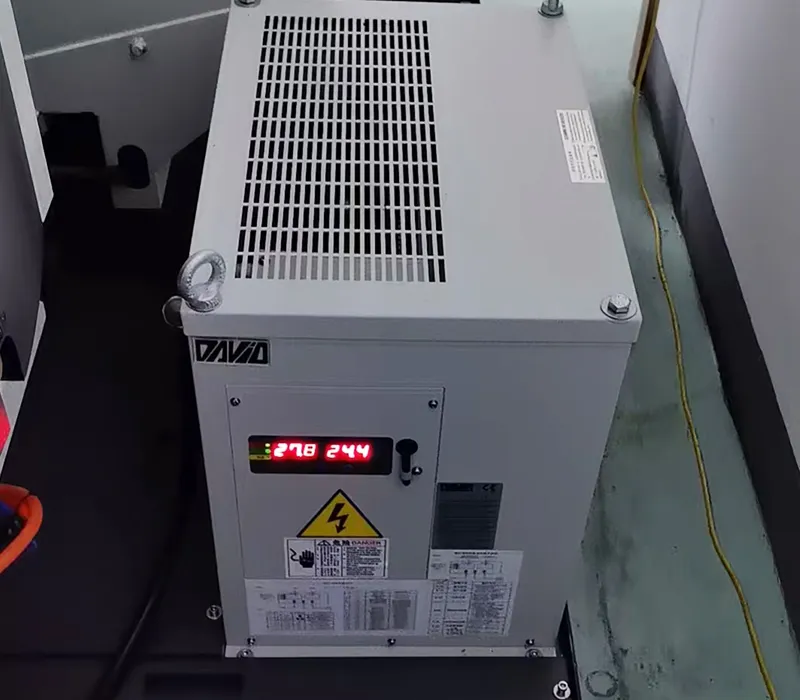

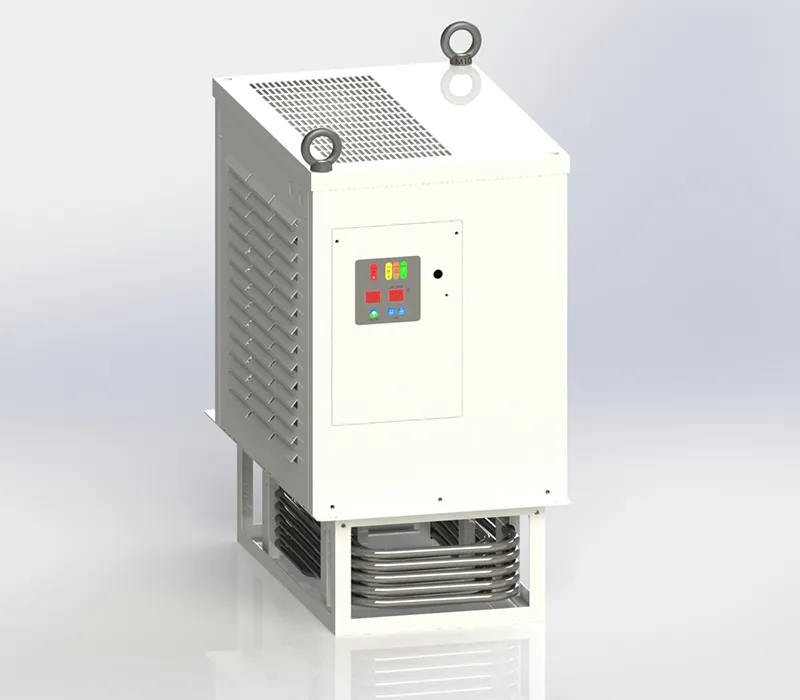

Cutting fluid immersion chillers are installed directly on coolant tanks and cool the liquid inside through a stainless-steel evaporator coil submerged in the tank. They use a refrigeration cycle that removes heat from the cutting fluid to control temperature in grinding machine coolant systems and machining centers. These process chillers are also used in other process tanks such as corrosive solution containers, electrolyte testing systems, and liquid tanks containing contaminated or unstable fluids that need stable temperature control.

Specification Sheet

Specifications

Model		AOK-15	AOK-25	AOK-35	AOK-50	AOK-70	AOK-100	AOK-120
Cooling Capacity	W	1500	2500	3500	5000	7000	10000	12000
Cooling Capacity	Kcal/h	1280	2150	3000	4300	6000	8600	10500
Power Supply		Single Phase AC 220V 50Hz or Three Phase AC 220/380V 50Hz
Rated Power (kW)		0.72	1.2	1.6	2.5	3	4.3	4.3
Rated Current (A)		2	3	4.3	5	6.5	8	8
Oil Temperature Range (℃)		Constant temperature control: 15°C to 50℃ Differential temperature control (ambient temperature compensation): +9°C Control accuracy: ±1.5℃
Ambient Temperature (℃)		5-45℃
Oil Viscosity (cSt)		5~68
Noise Level		≤62				≤68
Protection Rating (dB)		IP44
Dimensions (with Oil Tank) (mm)		440×450×900	496×420×975	496×420×975	640×600×1100	750×550×1130	780×750×14257	780×750×1425
Weight (kg)		70	80	100	110	130	160	180

Features

Cutting fluid immersion chillers are equipped with a PID control system that automatically adjusts temperature to match machining conditions and maintains stable, consistent cutting fluid behavior during processing.

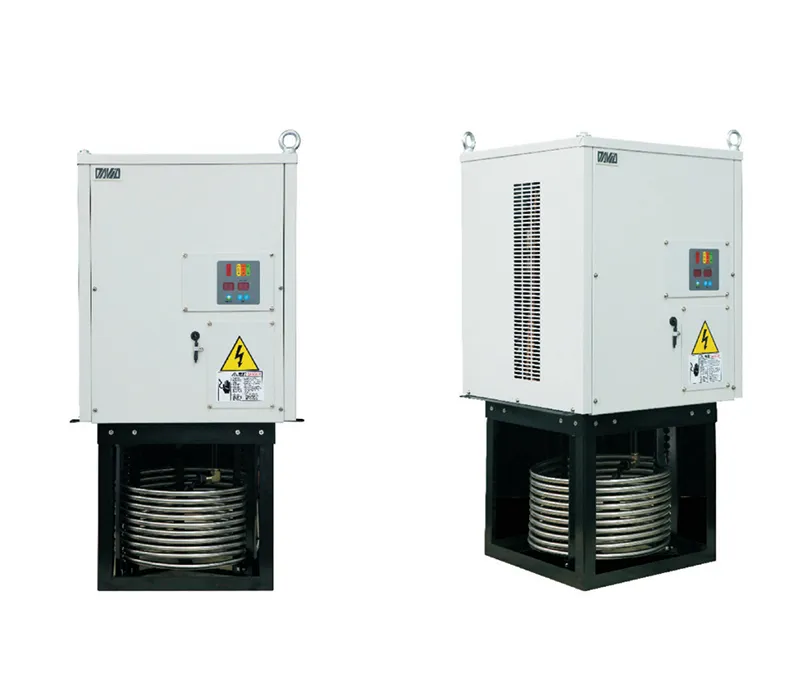

The immersion evaporator is installed inside the tank for direct heat exchange, keeps performance stable even with debris or contaminants in the fluid, and reduces the risk of circulation blockage.
